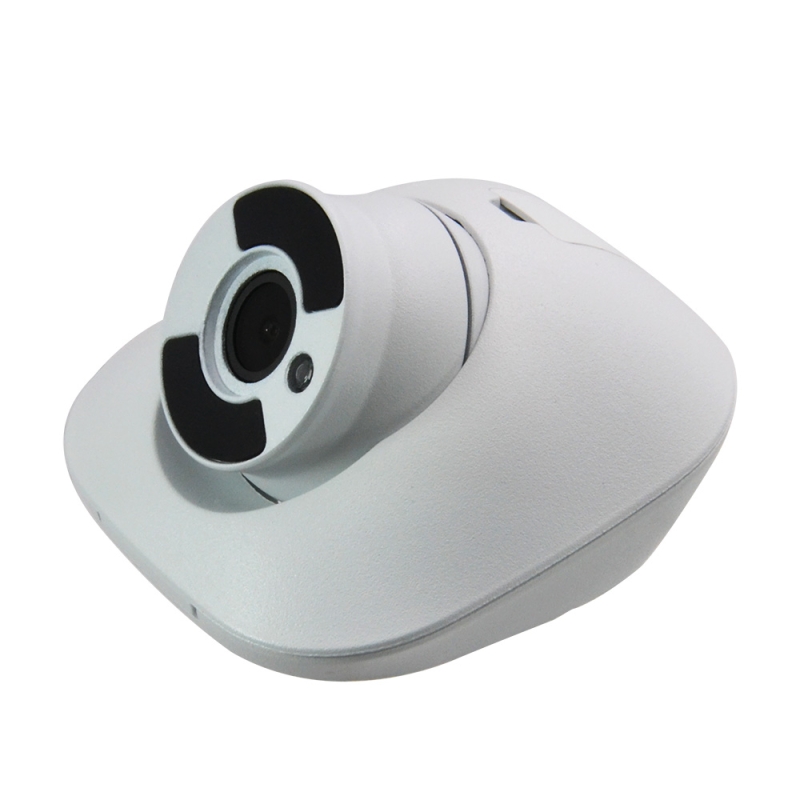

IP69K waterproof rating. The camera has a low overall height and a wider field of view. It also supports audio. We offer OEM and ODM customization, allowing for different chip solutions to be selected based on specific application scenarios to meet complex on-site requirements.
Product features:
1. 1080P high definition resolution
2. IP69K waterproof design
3. Support wide angle, up to 150°
3. Infrared distance 3-5 meters
4. Support on-site voice collection
5. Working temperature: -30oC---70oC
6. Working voltage: DC12V
Optional chip solutions:Economical, WDR
Specifications
Image sensor | 1/2.9"cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | Up to 150° |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 3m—5m |
Dynamic Range | 85db |
SNR | 52Db |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC——80oC，RH95%MAX |
Power Supply | 12V±10% |
