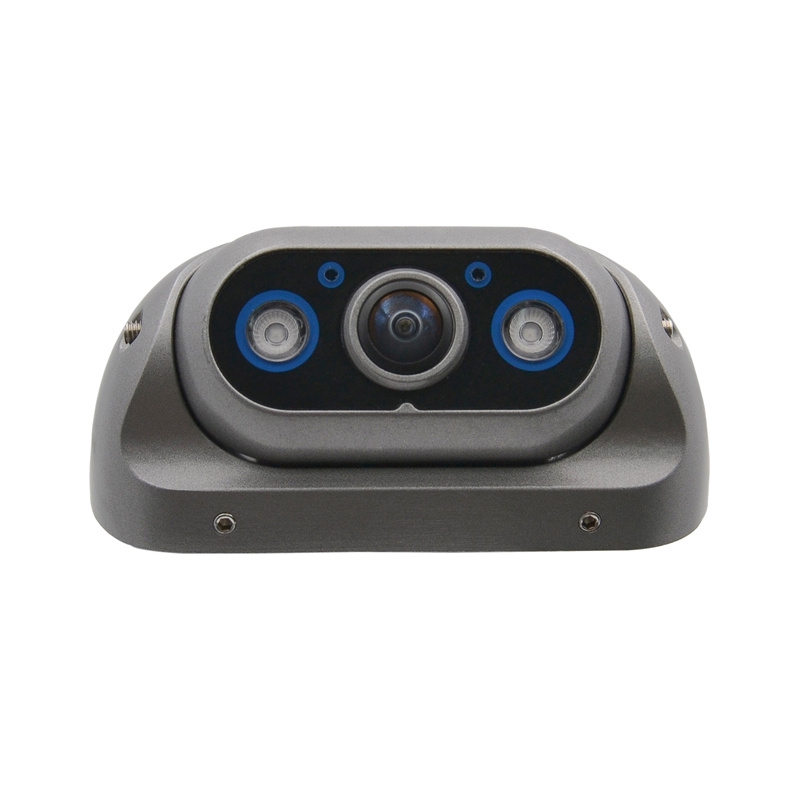

Featuring excellent waterproof design with an IP69K rating and superior shock resistance, this camera boasts an aesthetically pleasing design. It supports multiple mounting options, including vertical and horizontal installations, making it ideal for widespread use on various vehicles. This is an excellent side-view camera. OEM/ODM services are also available, providing customers with the most suitable choices.
Equipped with network HD cameras, they deliver superior image quality, safer transmission, and easier maintenance.
Product Features:
1、1080P HD camera

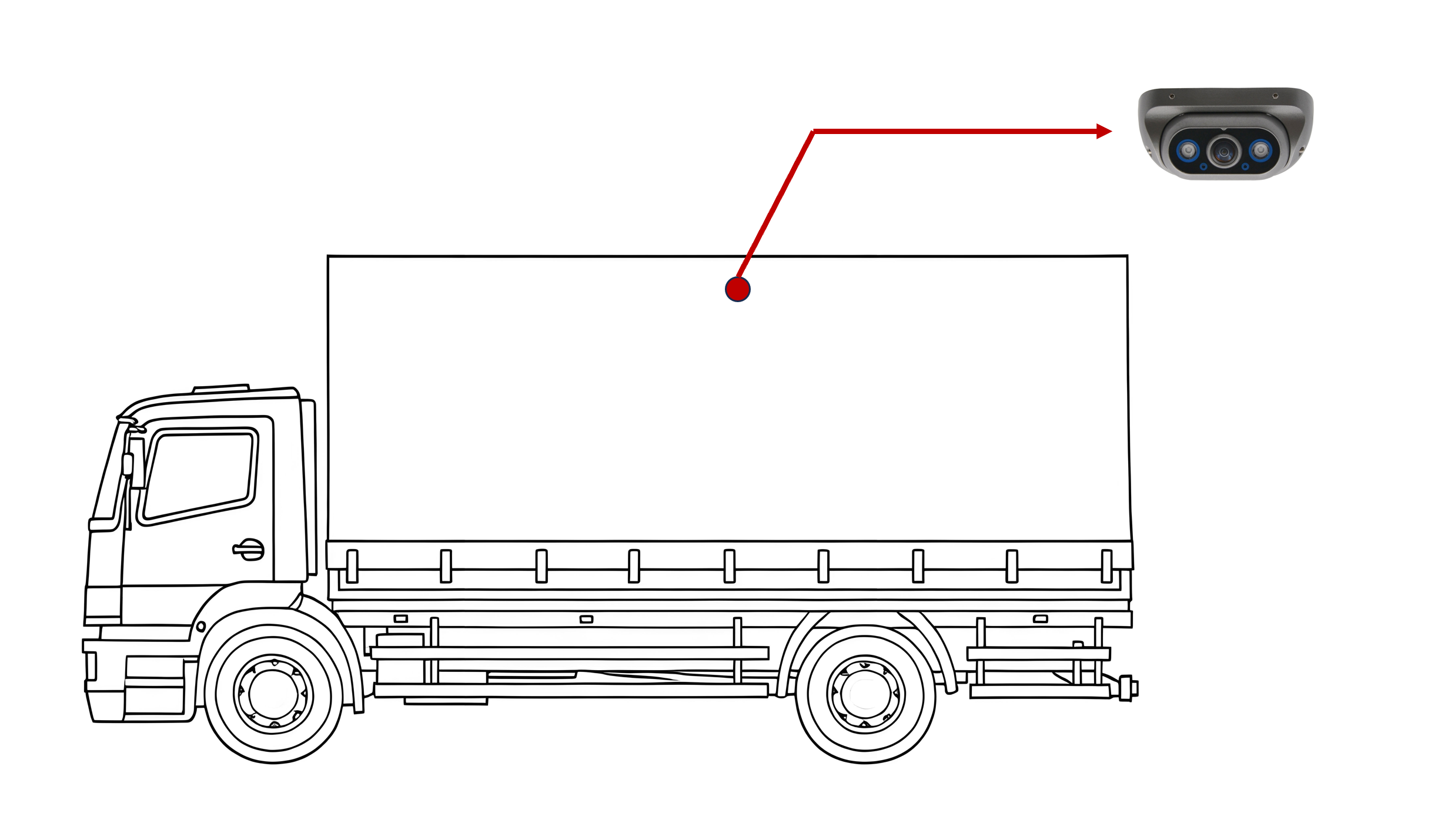

2、Suitable for external vehicle installation
3、Waterproof structural design, waterproof rating of IP69K
4、Wide-angle design, maximum angle up to 150o
5、Supports ONVIF protocol
6、Infrared range: 5-10 meters
7、Operating temperature: -30oC to 70oC
8、Voltage: 12V ±10%

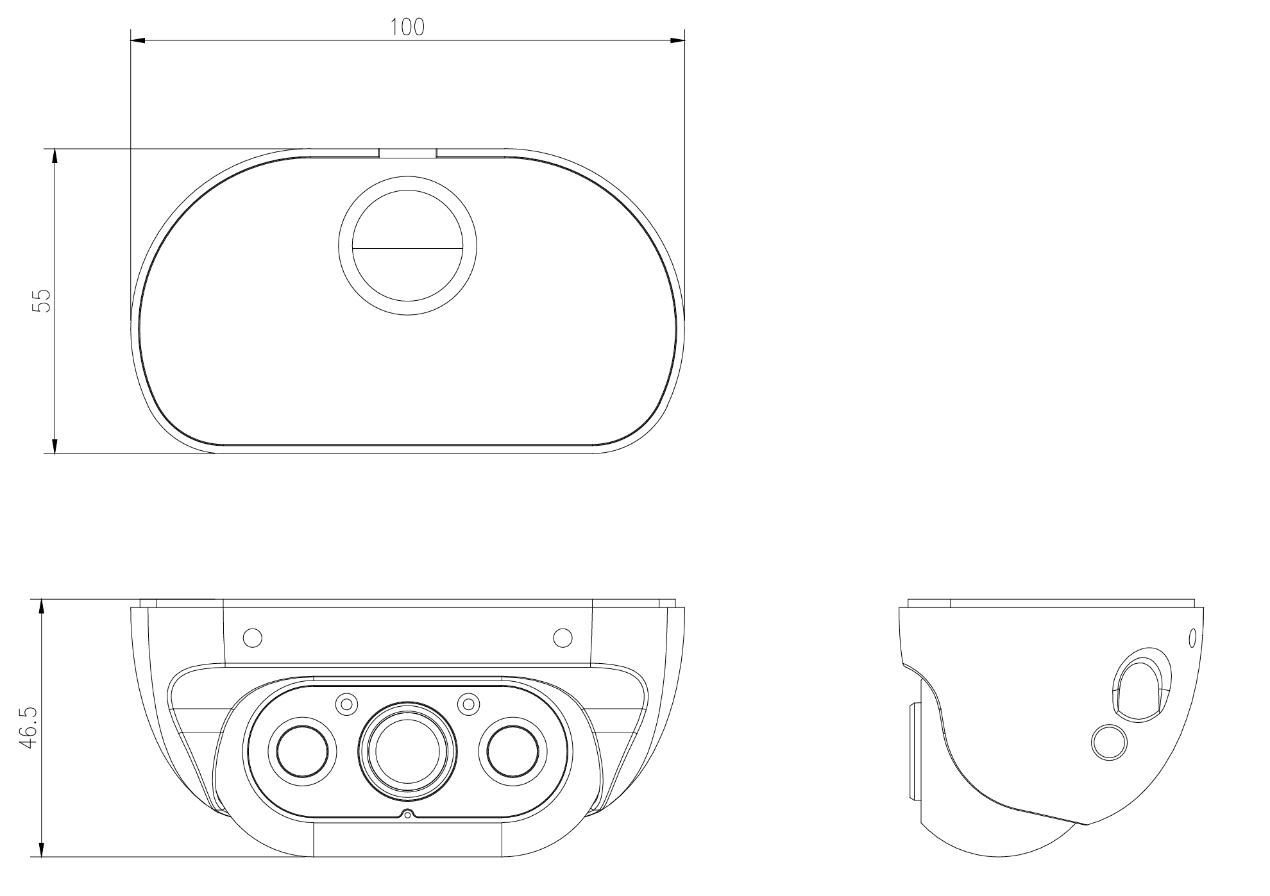

Specifications
FN321K-G3
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max150° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP69K |
Operating temperature | -30oC---70oC， RH95%MAX |
Storage temperature | -40oC---80oC，RH95%MAX |
Power Supply | 12V±10% |
